Vitarte Chic Series
Round exterior and square interior｜Smooth and comfortable｜Colorful space
Locations Inquire now
Oriental charm with modern beauty
Chinese aesthetics incorporated with modern elements to showcase the beauty of oriental design.
The owner’s style preferences are manifested through the delicate textures and harmonious colors inspired by Chinese poetry.
Auspicious wheels
Doors welcome blessings,
bringing the household luck and wealth
Circulating treasure
Places with good feng shui attract prosperity,
promote family harmony
The design of wealth and auspiciousness symbolizes infinite prosperity, bringing good feng shui and fulfilling your wishes.
  • Blending of tradition and modernity
  • Elegant wall background
  • Excellent screen display
Flexible and convenient
Multi-directional and double doors on the same floor are designed for each villa floor to showcase grandeur and creativity.
A touch of elegance and environmental protection is prioritized
The handrails and buttons made of high-grade Alcantara leather are a touch of elegance and care.
Over 90% of the parts can be recycled twice, and an eco-friendly spray transfer molding process is used to ensure health and safety.
The PVC carpets are beautiful and practical, easy to clean, comfortable and durable.
  • Premium materials
  • Eco-friendly
  • Stylish & comfortable
Small but smart spaces
Occupying a minimum area of only 1.12 square meters, the space utilization rate can reach up to 72%, bringing more convenience and possibilities to your life.

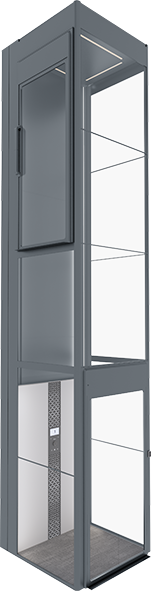

Colorful and distinctive space
The lifts’ range of classic colors complement with the home décor to create a visually striking living space.
Color matching

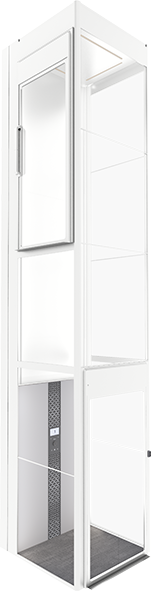

  • Classy white

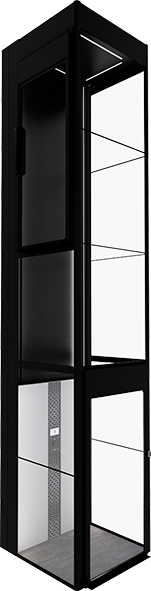

  • Matte black

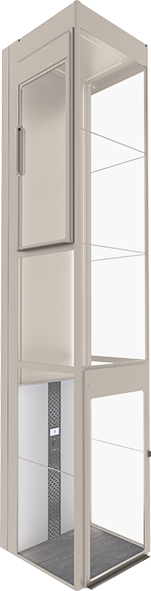

  • Champagne gold
  • Sky gray

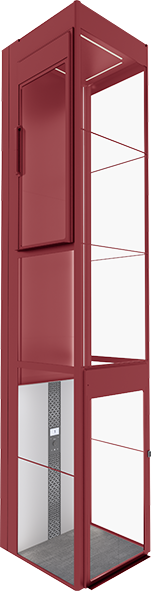

  • Burgundy
Wide range of choices
colour
Product Specifications
  • C7
  • C8
  • C9
  • C12
  • C15

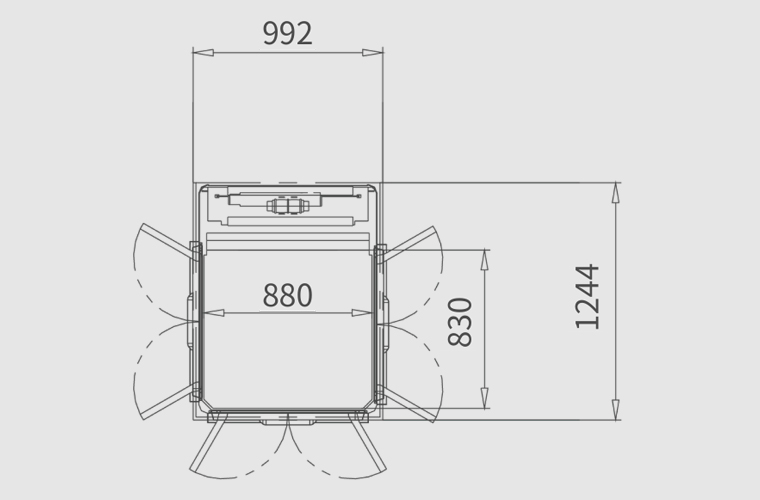

Platform dimensions：830 X 880mm

Lift dimensions：1244 X 992mm

Rated load：250kg

Capacity：2 Passengers

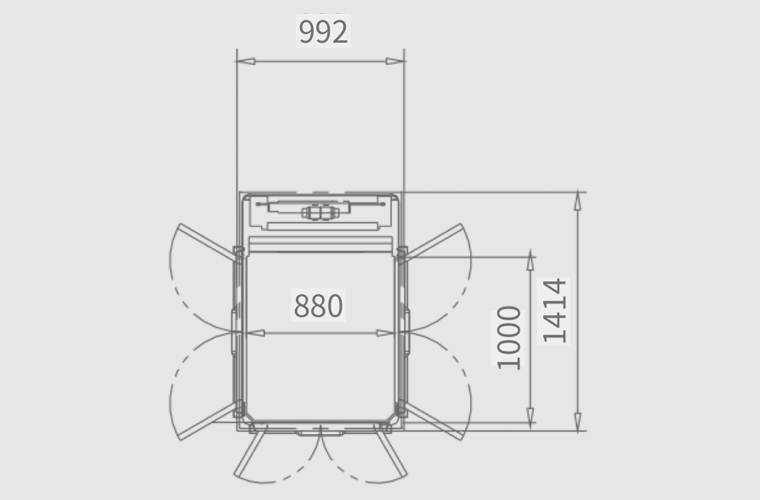

Platform dimensions：1000 X 830mm

Lift dimensions：1414 X 992mm

Rated load：250kg

Capacity：3 Passengers

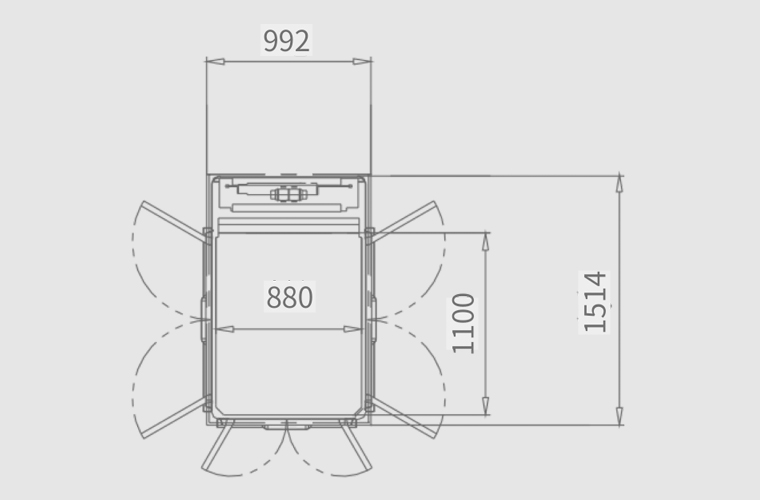

Platform dimensions：1100 X 880mm

Lift dimensions：1514 X 992mm

Rated load：250kg

Capacity：3 Passengers

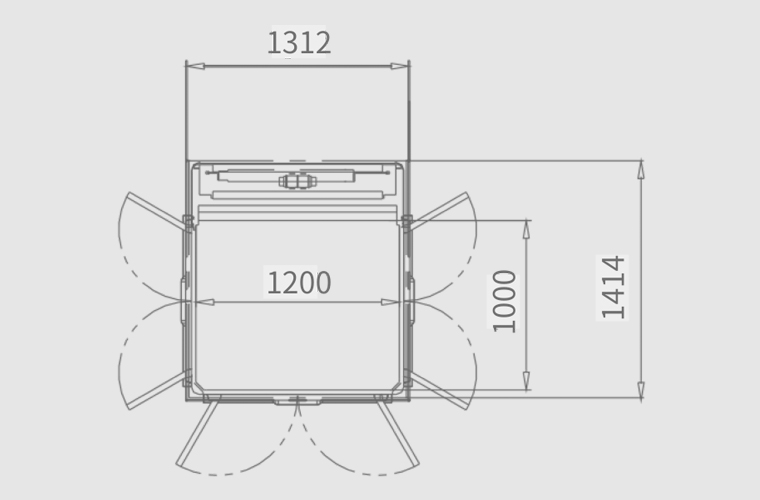

Platform dimensions：1000 X 1200mm

Lift dimensions：1414 X 1312mm

Rated load：400kg

Capacity：4 Passengers

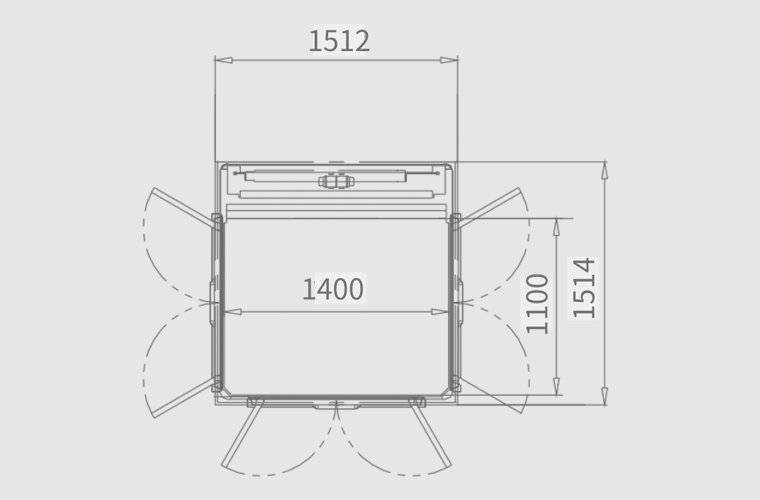

Platform dimensions：1100 X 1400mm

Lift dimensions：1514 X 1512mm

Rated load：400kg

Capacity：5 Passengers

  • Rated speed
    Maximum of 0.3m/s
  • Rated power
    2.7KW
  • Lifting height
    750-18000mm
  • Height of top level
    Minimum of 2,500mm
  • Floor suitability
    2 to 6-storey homes
  • Power supply
    220AC
  • Emergency descent
    Emergency power system
  • Environment suitability
    Private residences, indoor areas
  • Lift doors
    Standard configuration - large glass swing doors
    Optional – Smart double doors
  • Emergency phone
    One standard model
    Four optional models
  • Installation
    For installations with a pit, lifts are installed 67mm below the floor surface.
    A slope with a height of 80mm is required for installations without a pit.
